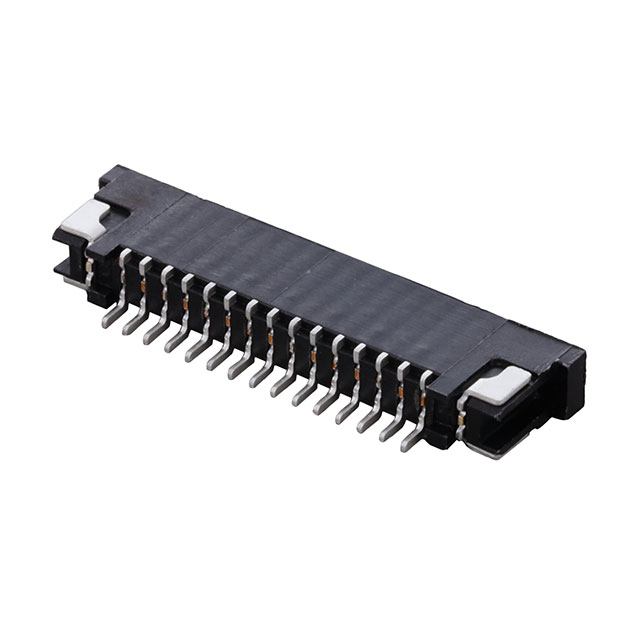

Cvilux USA CF08151H1R0-NH

CONN FFC FPC 15POS 1MM R/A

Manufacturer: Cvilux USA
Manufacturer's number: Cvilux USA CF08151H1R0-NH
Package: Tape & Reel (TR)
Datasheet: PDF
Stock: 1
SKU: CF08151H1R0-NH
Pricing:we created an exceptionally flexible and competitive pricing policy.

Quantity:

Add to Cart

Unit Price: $0.5200

Ext Price: $0.5200

Details

Parameters
Mfr	Cvilux USA
Series	CF08
Package	Tape & Reel (TR)
Product Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	15
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.102" (2.60mm)
Locking Feature	-
Cable End Type	Straight, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Polyamide (PA), Nylon, Glass Filled, Halogen Free
Actuator Material	-
Features	Low Insertion Force (LIF), Solder Retention
Voltage Rating	100V
Operating Temperature	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness	-
Housing Color	Black
Actuator Color	-
Mating Cycles	-
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	2,000

15 Position FFC, FPC Connector Contacts, Top and Bottom 0.039" (1.00mm) Surface Mount, Right Angle
