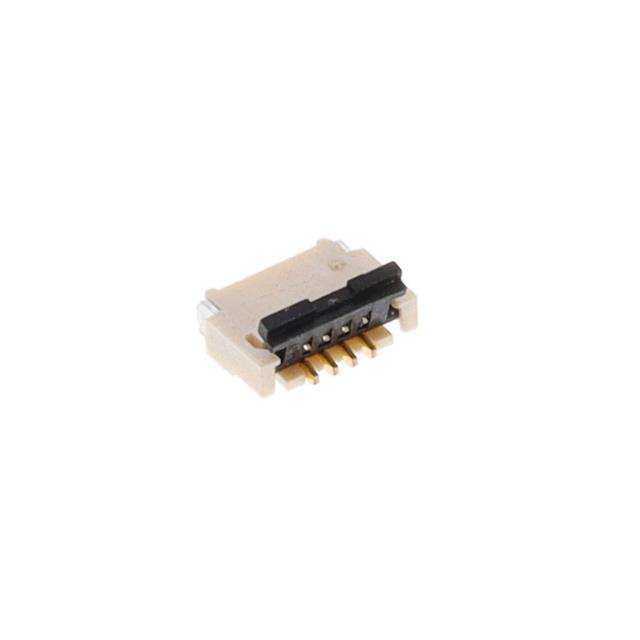

Cvilux USA CF4204FH0R0-05-NH

CONN FFC FPC 4POS 0.5MM R/A

Manufacturer: Cvilux USA
Manufacturer's number: Cvilux USA CF4204FH0R0-05-NH
Package: Tape & Reel (TR)
Datasheet: PDF
Stock: 2
SKU: CF4204FH0R0-05-NH
Pricing:we created an exceptionally flexible and competitive pricing policy.

Quantity:

Add to Cart

Unit Price: $0.2500

Ext Price: $0.2500

Details

Parameters
Mfr	Cvilux USA
Series	CF42
Package	Tape & Reel (TR)
Product Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	4
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.038" (0.97mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Thermoplastic, Halogen Free
Actuator Material	Thermoplastic, Halogen Free
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	0.79µin (0.02µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	-
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	3,500

4 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
